When leiomyomas are thought to be contributing to clinical symptoms, the FIGO-defined phenotype can define those patients more suitable for image-guided HIFU ablation. It is to be remembered that the role or impact of HIFU on fertility or pregnancy has not been adequately evaluated, particularly with respect to leiomyoma phenotypes. Consequently, Type 0, 1 and 2 lesions that are best treated hysteroscopically should be removed transcervically. Those potentially appropriate for HIFU include FIGO types 1 and 2 that are not suitable for hysteroscopic removal, and symptoatic Type 3-6 and Type 8 lesions up to 20 cm in mean diameter. Type 7 leiomyomas (where the pedicle is less than 10% of the mean diameter, or where there is no intramyometrial component of the tumor) should be removed surgically due to slow absorption of the necrotic tissues and slow reduction of fibroids after USgHIFU treatment. For fibroids larger than 20cm in diameter, surgical intervention is recommended.

Patients Unsuitable for HIFU

1. Comorbidities such as  uncontrolled hypertension, history of cerebrovascular incident, history of myocardial infarction, severe arrhythmia, heart failure and liver failure
2. Acute inflammation of the pelvis or reproductive tract
3. Known or suspected malignancy of the uterine cervix, uterine corpus (including sarcoma and endometrium), ovaries or other elements of the reproductive system
4. Absence of a safe acoustic pathway, including severe scars with an acoustic attenuation width of >1.5 cm preventing sonographic visualization of posterior tissue.
5. Patients who are unable to lie prone for 1 hour under analgesic sedation

Gastrointestinal Preparation

Since the gastrointestinal (GI)  tract may appear in the acoustic pathway during therapy, three days of GI preparation is necessary. The patient is instructed to limit their dietary restrict to foods that are low in fiber and non-gassy. One day prior to FUS, the diet is limited to non-lactose containing liquids, and fasting is required for 12 hours before treatment. The patient is instructed to self-administer an enema before treatment on the day of the procedure.

Skin Preparation

Preparation of the skin is necessary to avoid residual microscopic air bubbles in the skin hair follicles, which may cause skin damage during USg-HIFU. First, and after the patient is in the procedure room and positioned on the HIFU table hair is shaved from the upper border of the pubic symphysis to the navel, and on either side to the anterior axillary line. Then, the skin is prepared with degassed water and 75% alcohol to degas and degrease, respectively.

Controlling the Volume in the Urinary Bladder

A urinary catheter is inserted before treatment. so that the size of the bladder can be controlled by perfusing normal saline or releasing urine as needed during HIFU, creating a safe acoustic pathway.

Oxytocin [MM1]

The use of oxytocin during USgHIFU treatment is to facilitate the results of sanitation by reducing the blood supply to the uterus and myometrium by simulating contractions of uterine smooth muscle. Contrary to previous perceptions, Chinese investigators have found that under certain conditions, oxytocin causes contractions in non-pregnant uterus [Huang, 2011]. In our center, 40 units of oxytocin are added to 500ml of 5% dextrose solution and delivered in a continuous IV drip at 20-30 drops/min. If an oxytocin test (?) is performed before USg-HIFU, the concentration shall be adjusted according to the response of the fibroid to oxytocin.[MM1]Would you like this

Targeting

The patient lies in the prone position with a soft mattress protecting weight-bearing parts. The body position is fixed after analysis by the machine-loaded imaging system guiding the targeting. The location, size and ultrasound imaging features of the fibroid, the 3 dimensions of the fibroid and its adjacency with surrounding structure and tissue are defined[MM1] .SonoVue® is a proprietary intravenous contrast agent that is recommended before and after USg-HIFU for ultrasound imaging to achieve satisfactory ablation. Imaging before USgHIFU is to assess the blood supply to the fibroid(s) and to estimate treatment dosage, while the purpose of post-treatment imaging is to evaluate the completeness of the ablation, allowing the operator to retreat inadequately ablated areas.

Formulation of the Ablation Treatment Plan

The initial guiding image is the sagittal view that provides a critical positional relationship between the targeted lesion and the surrounding tissues. A stratified treatment plan is made with a slice spacing of 5 mm, based on the left-right or upper-lower diameter of the target tumor. The scanning range is the left-right or upper-lower diameter of the target tumor, plus 5 mm at both ends. The purpose of increasing the range is to better specify the boundaries of the lesion and determine the scope of treatment (Orsi, 2010; Zhang, 2015).

Anesthesia

HIFU treatment is performed under intravenous sedation and analgesia. The degree of sedation should allow the patient to tolerate the unpleasant treatment process, while maintaining sufficient cardiopulmonary function and capability of responding to language and light stimulation.

Treatment Technique Summary

The therapist selects an appropriate section or area to start the treatment, usually the largest tumor section plane. [MM1] A trial dose should be tested at the time of the first treatment at each slice in deep regions or when a higher dose is about to be applied at any dot. If adverse events occur (e.g. pain that radiates into the lower extremity, pain in the perineum), treatment dosage should be adjusted accordingly. The purpose of treating from deep to shallow regions is to ensure the complete ablation of the deeper regions of the tumors  with sufficient energy (Orsi, 2010). The treatment duration varies significantly depending on the size, number, location, type, and blood supply of the fibroid(s). Current data show that the total treatment time for most patients is less than 2 hours. For a small number of difficult cases, considering treatment safety and patient tolerance, the total sonication time should not exceed 3,500 seconds (or approximately 58 minutes) for a single treatment.  As suggested previously SonoVue®   may be used to evaluate inadequately ablated areas for additional sonication.

Endometrial Protection

For patients with fertility needs, special attention should be paid to the protection of the endometrium during HIFU ablation. During treatment, the distance between the focal point and the endometrium should be greater than 1.5cm, with a treatment frequency of 1-second sonication and a 2-second rest. The ablation region should be adjusted according to the range of grayscale change to avoid damaging the endometrium.

For outpatient HIFU treatment patients with no or minimal discomfort can be discharged following 2 hours of observation. Some patients may experience lower abdominal discomfort or vaginal discharge caused by uterine contractions, and may require rest at home for a few days. In addition, close observation is required for 2 weeks after HIFU and a follow-up plan should be in place[MM1].

Skin Injury

Skin injury is common in patients who are obese or have abdominal scarring.  The risk of skin injury can be reduced by adjusting the intensity of treatment and close monitoring intraprocedure skin response.

Intestinal Injury

Intestinal injury after focused ultrasound ablation is rare. An effective and preventive measure is to establish a safe acoustic pathway for treatment.

Other Adverse Events

Other rare complications include: fever, hematuria, and secondary infection.

Overall Reintervention Rates

Re-intervention is defined as any need for recurrent treatment after HIFU treatment. In a prospective non-randomised cohort study, the re-intervention rate at 12-month after HIFU treatment was 1.0% [Liu, 2018]. Another 8-year follow-up retrospective study for recurrent symptomatic uterine fibroids showed that the re-intervention rate after HIFU treatment was 0%, 3.2%, 9.5% 13.7% at 12, 36, 60, 96 months, respectively [Liu, 2020]. The treatment for re-intervention could be a second HIFU, myomectomy and hysterectomy.

Abnormal Uterine Bleeding

Pressure

Imaging [MM1]

According to the literature, the average shrinkage rate is 50%, 70%, 80% in 6, 12, 24 months after HIFU, respectively [Rodriguez 2021]

Fertility and Pregnancy

The precision of HIFU provides optimism about the treatment of leiomyomas in women planning pregnancy. Theoretically, the risk of uterine rupture during pregnancy and delivery would be less than that of myoma excision because there is no damage to uterine smooth muscle. Results from several groups of investigators have published reassuring data, suggesting that patients with fibroids, considering future pregnancy, may suitable for HIFU treatment [Rodriguez 2021, Zou 2017]. In a nonrandomized comparative study from China, USg-HIFU was associated with significantly reduced the time to pregnancy compared to myomectomy. Furthermore, the incidence of placental implantation disorders, placenta praevia and postpartum hemorrhage was lower in the USgHIFU group [Wu, 2020]. For infertility patients, a systematic review has showed that HIFU treatment might improve infertility and some infertility patients have achieved pregnancy after HIFU treatment [Anneveldt, 2021]. However, despite these data, most would suggest caution before it can be concluded that HIFU or any other thermal ablative technique should be considered the treatment of choice for those with infertility thought to be caused by leiomyomas.

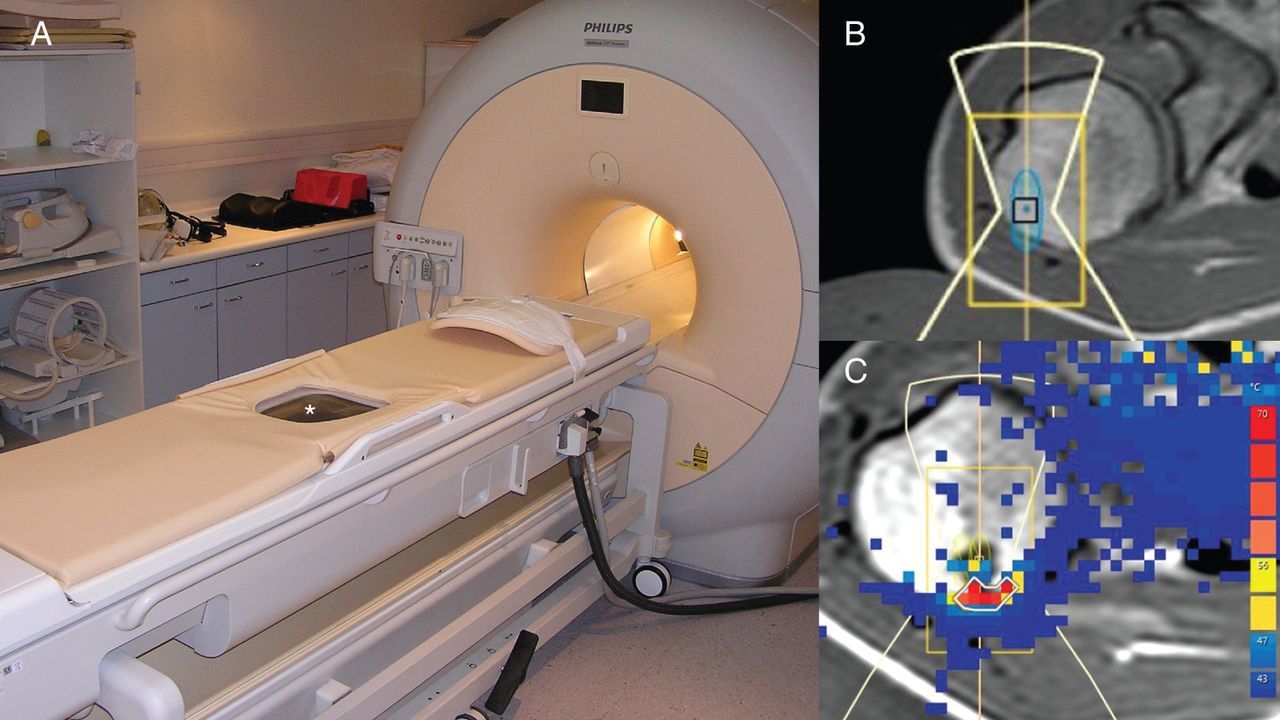

In the US, Tempany et all initially reported the safety and feasibility of MRg-HIFU for the treatment of uterine fibroids [Tempany, 2003]. With high anatomic resolution of soft tissues and the capacity for temperature mapping, theoretically, MRg-HIFU should achieve more precise ablation of the targeted uterine fibroids. However early studies have shown that the average ablation volume [MM1] of uterine fibroids with MRg-HIFU is only around 30%. In spite of this relatively low ablation volume, partial or significant symptom relief has been achieved [Rabinovici, 2007]. However, long-term follow-up results indicate that patients with higher ablation volumes (called non-perfused volumes, or NPV) have more pronounced symptom relief and lower reintervention rates [LeBlang, 2010; Hindley, 2004]. Unfortunately, there are no existing clinical comparisons of MRg-and USg- HIFU [MM1].

In recent years, several international societies and institutions have recommended HIFU for the treatment of uterine fibroids. The National Institute for Health and Care Excellence (NICE) in the UK currently recommends HIFU as an option for the treatment of uterine fibroids  [NICE 2019], particularly for patients with symptomatic fibroids who wish to preserve their fertility and who have not responded to other treatments (such as medication or surgery). NICE also recommends that HIFU should only be performed by experienced practitioners in centers with appropriate facilities and equipment. The Society of Obstetricians and Gynaecologists of Canada (SOGC) states that HIFU is a promising alternative to surgery for fibroids, but further research is needed to assess its long-term safety and effectiveness. The European Society for Gynecological Endoscopy (ESGE) also recommends HIFU as a surgical alternative for the treatment of uterine fibroids. ESGE also states that more data are needed to evaluate its long-term safety and efficacy.

It is important to note that above recommendations are based on evidence from several years ago and may change as more evidence on safety and efficacy of HIFU for the treatment of uterine fibroids becomes available.
